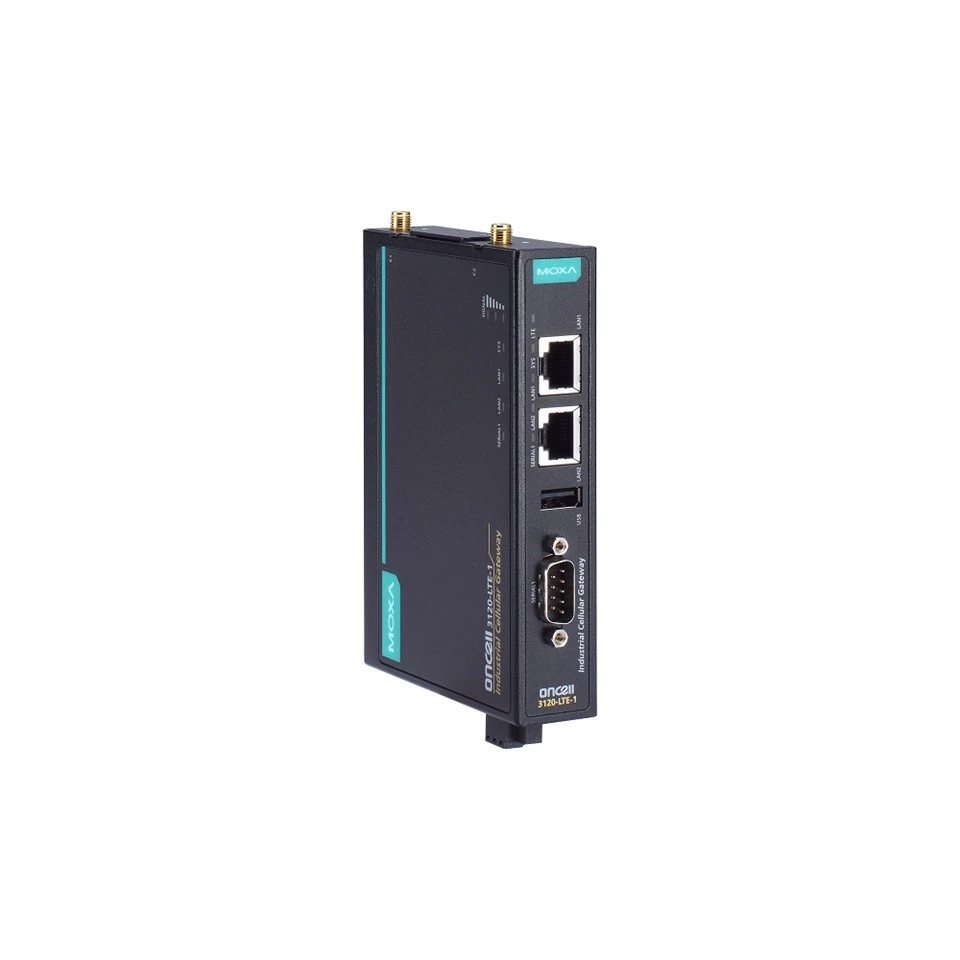

Mo'minBir marta 3120- LTE {1}} EISanoat lte mushuk. 1 uyali shlyuzlar

Xususiyatlari va Foyda

MRC tezkor havolasini markazlashtirilgan monitoring va boshqa qurilmalarga masofadan olish uchun MRC tezkor aloqalarini qo'llab-quvvatlash
Quvvat iste'moli kam (40 mVty)
Guaranlink ishonchli uyali ulanish uchun
Ikki sim bilan zaxira qilingan ikki uyali aloqa operatori
Uyali aloqa mexanizmi to'liq yo'ldan ozish uchun zaxira mexanizmini qo'llab-quvvatlaydi
Xavfli joylar uchun yaxshi mos keladigan dizayn (ATEx Zone 2 / IECEX)
VPN XPSEC, GRE va OpenVPN protokollari bilan aloqada ulanish qobiliyatini

Kirish

MOXA BILLL 3120-}}}}}}}} Evropa Ittifoqi LTE shtati global LTE shtati bilan LTE shlyuzi. Ushbu LTE uyali shkaflari, arizalaringiz osongina amalga oshirilishi uchun masofaviy serial va Ethernet qurilmalaridan ishonchli aloqalarni ta'minlaydi. Quvvatni samarali tejash xususiyatlari, zinapoyadan 3120- Yevropa Evropa Ittifoqi soatlar davomida boshlang'ich rejimda boshqarilishi mumkin bo'lgan vaqtni 40 mV dan kam ushlab qolinadi. Sanoat ishonchliligini oshirish uchun, zinapoyaning asosiy qismi Guaranlinkning mustahkam uyali ulanishini ta'minlaydi.

Uzoq Kirish Shlyuz bilan Vpn va Tarmog'i Xavfsizlik

MRC tezkor aloqalarini masofadan kirish uchun ULTRA-ni qo'llab-quvvatlaydi va sozlash oson. Qo'shimcha ma'lumot olish uchun iltimos, xavfsiz masofadan kirishga kirish (https: // www.moxa.com/EN/EN/products/ kamfrine-becrate-xacrage/moxee-remote-cone-suite)).

Nat / OpenVPN / GRE / IPSEC funktsional imkoniyatlari bilan xavfsiz va ishonchli VPN qo'llab-quvvatlash

IEC 62443-4-2 ga asoslangan kiberlararo xususiyatlar

Sanoat sinfi Ishonchlilik

Xavfli joylar uchun yaxshi mos keladigan dizayn (ATEX, C1D2, IECEX)

Guaranlink ishonchli uyali ulanish uchun

WAN uyali va Ethernet o'rtasidagi zaxira

-30 70 daraja haroratli haroratga

Kam quvvatni kam sarflash: kutish holatida 40 MVt dan kam

Texnik xususiyatlari

Uyali Interfeys

Uyali Standartlar	Lte mushuk. 1 HSPA UMTS EDGE GPRS GSM
Lte Ma'lumotlar Baholamoq	10 Mhz 'bygievth: 10.2 Mbits dl, 5.2 Mbits Ub
Hasha Ma'lumotlar Stavka	7.2 Mbits DL, 5.76 Mbits UL
Guruh Variantlar (EI)	LTE CENCE 1 (2100 MGts) / LTE CENE (1800 MGts) / LTE CAND 7 (900 MGts) / LTE CANITA 28A (800 MGts) UMTS / HSPA 900 MHZ / 1800 MHZ / 2100 MGZ GSM 900 MHZ / 1800 MGZ
Guruh Variantlar (Au)	LTE-CEN 1 (2100 MHZ) / LTE CENET 3 (1800 MGts) / LTE CENCE 5 (850 MHz) / LTE CAND 8 (900 mhz) / LTE CAND 9 (1800 MGts) 18 (850 Mhz) / LTE CANIT 19 (850 MGts) / LTE CAND 26 (850 MHZ) / LTE CANIT 28 (700 MGts) UMTS / HSPA 2100 MHZ / 850 MHZ / 800 MHZ / 900 MGts
Guruh Variantlar (US)	LTE CENT 2 (1900 MGts) / LTE CENE (1700 mhz (AWS)) / LTE Band 14 (700 MGts) / LTE Band 14 (700 MGts) (1700 mhz) / LTE CAND 71 (600 MGts) UMTS / HSPA 1900 MHZ / 1700 MHZ / 850 MGts
Yo'q dan Sims	2
Sim Format	Nano sim
Uyali Antenna Ulagichlar	2 SMA ayol

O't Interfeys

10 / 100baset (x) Portlar (RJ45 Ulagich)

USB Interfeys

Yo'q dan USBPortlar	1
USB Ulagich	USB turi a
USB Standartlar	USB 2. 0

Seriyaga oid Interfeys

Yo'q dan Portlar	1
Ulagich	Db9 erkak
Seriyaga oid Standartlar	Rs -232 / 422/485
Ma'lumotlar Bit	5, 6, 7, 8
STOP Bit	1, 1.5, 2
Tenglik	Yo'q, hatto, g'alati, bo'sh joy, belgi
Bodreyt	75 BPS 921.6 Kbit / s
Konsol Portlamoq	Rs -232 (TXD, RXD, GND), 4- pinli sarlavha ishlab chiqarish (115200, n, 1, 1)

Seriyaga oid Signallar

Rs-232	TXD, RXD, CTS, DTR, DSR, DCD, GND
Rs-422	Tx +, tx-, rx +, rx-, gnd
Rs -485-2w	Ma'lumot +, ma'lumotlar -, GND
Rs -485-4w	Tx +, tx-, rx +, rx-, gnd

O't Dasturiy ta'minot Xususiyatlari

Boshqaruv	Guaranlink DHCP Server DDNS Arp Telnet TCP / IP udp SMTP Masofadan boshqarish vositalarini boshqarish Elementni tejash Syslog Snmpv1 / V2C / V3 seriyali telnet konsolining konsoli Veb-konsol simsiz qidiruv dasturi MOXA masofadan ulanish (MRC)
Qo'rg'on	Filtr: Mac, IP Protocol, portga asoslangan IPli IP ro'yxati
Xavfsizlik	Https
VaqtBoshqaruv	SNTP mijoz

Ipsec Vpn

Autentifikatsiya	PSK / X.509 / RSA
Shifrlash	Des, 3Des, AES, MD5, Sha -1, DH2, DH5
Bir vaqtning o'zida VPN tunnellar	5

Kasal

Xususiyatlari

Nat Loopback {{0} -1

N-dan -1

Portni yo'naltirish

Ochmoq

Ochmoq	OpenVPN (mijoz va server), tunnel rejimi (yo'naltirish) va MODE (ko'prik)
Shifrlash	CBC, des CBC, Des-Ede3 CBC, AES -128 {192/256 CBC
Kelishadigan Vpn Tunnellar	5

Kuch Parametrlar

Kirish Hozirgi	0. 8 A (maksimal)
Kirish Kuchlanishi	9 dan 36 vdc
Kuch Iste'moli	5 w (TUZ.)
Kuch Ulagich	Terminal blok
Teskari Chidamlilik Himoya qilish	Qo'llab-quvvatlanadigan
Kuch Tugmasi	Qayta tiklash tugmachasini bosing

Jismoniy Xususiyatlar

Uy-joy	Metall
Ip Reyting	Qaysar
O'lchamlari	128.5 x 26 x 26.1 mm (5.06 x 1,02 x 3.51)
Vazn	550 g (1.22 funt)
O'rnatish	Din-temir yo'l harakati Devorga o'rnatish (ixtiyoriy to'plam bilan)

Atrof-muhitga oid Chegaralar

Ishlamoq Harorat	Standart modellar: {{0} {55 daraja (32-100 daraja f) keng temp. Modellar: {{4} 70 daraja (-22 158 daraja f)
Saqlash Harorat (paket kiritilgan)	-40 85 darajaga (-40 185 daraja f)
Atrof Qarindosh Namlik	5 dan 95% (kondensat bo'lmagan)

Standartlar va Sertifikatlar

O'taketmoq	En 55032/35 En 61000-6-2 / {1}}
Emi	CISPR 32, FCC QISM BIRINChI ASOSIY
Ems	IEC 61000-4-2 ESD: Aloqa: 4 kV; Havo: 8 kV IEC 61000-4-3 RS: 8 GHZ to 1 ga yaqin: 10 V / m IEC 61000-4-4 Eft: Quvvat: 1 kV; Signal: 1 kV IEC 61000-4-5 Qilish: 1 kV; Signal: 1 kV IEC 61000-4-6 CS: 10 V; 150 kHz 80 mhz gacha IEC 61000-4-8: 30 A / m
Kamchilik	IEC 60068-2-32
Zararli Joylar	ATEX IECEX Men bo'linma 2
Radio Chastota	Prtcr FCC ID SLE-LE9110CXNF
Radio	RCM KC Jeat NCC Telew
Tashuvchi Tasdiqlash	Verizon AT & T
Uyali Standartlar	En 301511 En 301908-1 En 62311 (MPE SAR) sifatida En 301489-1 / {1}}
Xavfsizlik	IEC 60950-1 IEC 62368-1 Ul 60950-1 Ul 62368-1
Shok	IEC 60068-2-27
Tebranish	IEC 60068-2-6
Yashil rang Mahsulot	Rohs, cox, wedee

Mtbf

Vaqt	585,775 HRS
Standartlar	Telcordia SR332

Paket Tarkibi

Qurilma	1 x Defol 3120- LTE -1 seriyali LTE uyali shlyuzi¹
O'rnatish Kit	1 x dossoni
Hujjat	1 x tezkor o'rnatish bo'yicha qo'llanma 1 X Kafolat kartasi

1. Faollashtirilgan Nano SIM kartasi (kiritilmagan) uchinchi tomon uyali aloqa provayderi tomonidan ta'minlanishi kerak.

O'lchamlari

Buyurtma berish Ma'lumot

ModelIsm	UyaliStandart	LteGuruh	IshlamoqTemp.	O'rnatish
Birligidan bir marta 3120-} -1- EI	Lte mushuk 1	B1 (2100 mhz) / b3 (1800) MHZ) / B7 (2600 mhz) / b8 (900 mhz) / b20 (800 mhz) / B28a (700 mhz)	-0 55 darajaga qadar	Devor, Diels
3120-} -1- EU-T	Lte mushuk 1	B1 (2100 mhz) / b3 (1800) MHZ) / B7 (2600 mhz) / b8 (900 mhz) / b20 (800 mhz) / B28a (700 mhz)	-30 70 darajaga	Devor, Diels
Birligidan 3120- LTE {1}} au	Lte mushuk 1	B1 (2100 mhz) / b3 (1800) Mhz) / b5 (850 Mhz) / B8 (900 mhz) / b9 (1800 mhz) / B18 (850 MHZ) / B19 (850) MHZ) / B26 (850 Mhz) / B28 (700 mhz)	-0 55 darajaga qadar	Devor, Diels
Birligidan 3120- LTE {1}} au-t	Lte mushuk 1	B1 (2100 mhz) / b3 (1800) Mhz) / b5 (850 Mhz) / B8 (900 mhz) / b9 (1800 mhz) / B18 (850 MHZ) / B19 (850) MHZ) / B26 (850 Mhz) / B28 (700 mhz)	-30 70 darajaga	Devor, Diels
Birlikmall 3120- LTE {1} 7.	Lte mushuk 1	B2 (1900 MGts) / B4 (1700) MHZ) / B5 (850 Mhz) / B12 (700 mhz) / b13 (700 mhz) / B14 (700 MGts) / B66 (1700) MHZ) / B71 (600 mhz)	-0 55 darajaga qadar	Devor, Diels
Birligida 3120- LTE -1- US-T	Lte mushuk 1	B2 (1900 MGts) / B4 (1700) MHZ) / B5 (850 Mhz) / B12 (700 mhz) / b13 (700 mhz) / B14 (700 MGts) / B66 (1700) MHZ) / B71 (600 mhz)	-30 70 darajaga	Devor, Diels

Aksessuarlar (sotilgan) alohida)

Antenna

Ant-Lteus-Asm -01	GSM / GPRS / EDT / UMTS / HSPA / LTE, 1 DBI, ANDIRIVETAL RABERAGIGIDOGI
Ant-LTE-ASM -02	GPRS / EDGE / UMTS / HSPA / LTE, 2 DBI, ANDIRIVIRIYA RABBER-DUKDERIK
